Mac Tools EM821 EV & HEV Automotive DMM Kit 1000V CAT III Multimeter w/ Accessor

Application: Designed specifically for testing high-voltage hybrid and electric vehicle systems safely alongside traditional automotive diagnostics.

Complete diagnostic kit for electric (EV), hybrid (HEV), and conventional automotive

work. Rated 1000V CAT III / 600V CAT IV. Includes the meter, test leads, ignition cables, temperature probe, RS-232C PC interface with USB adapter, software CD, manual, and hard case.

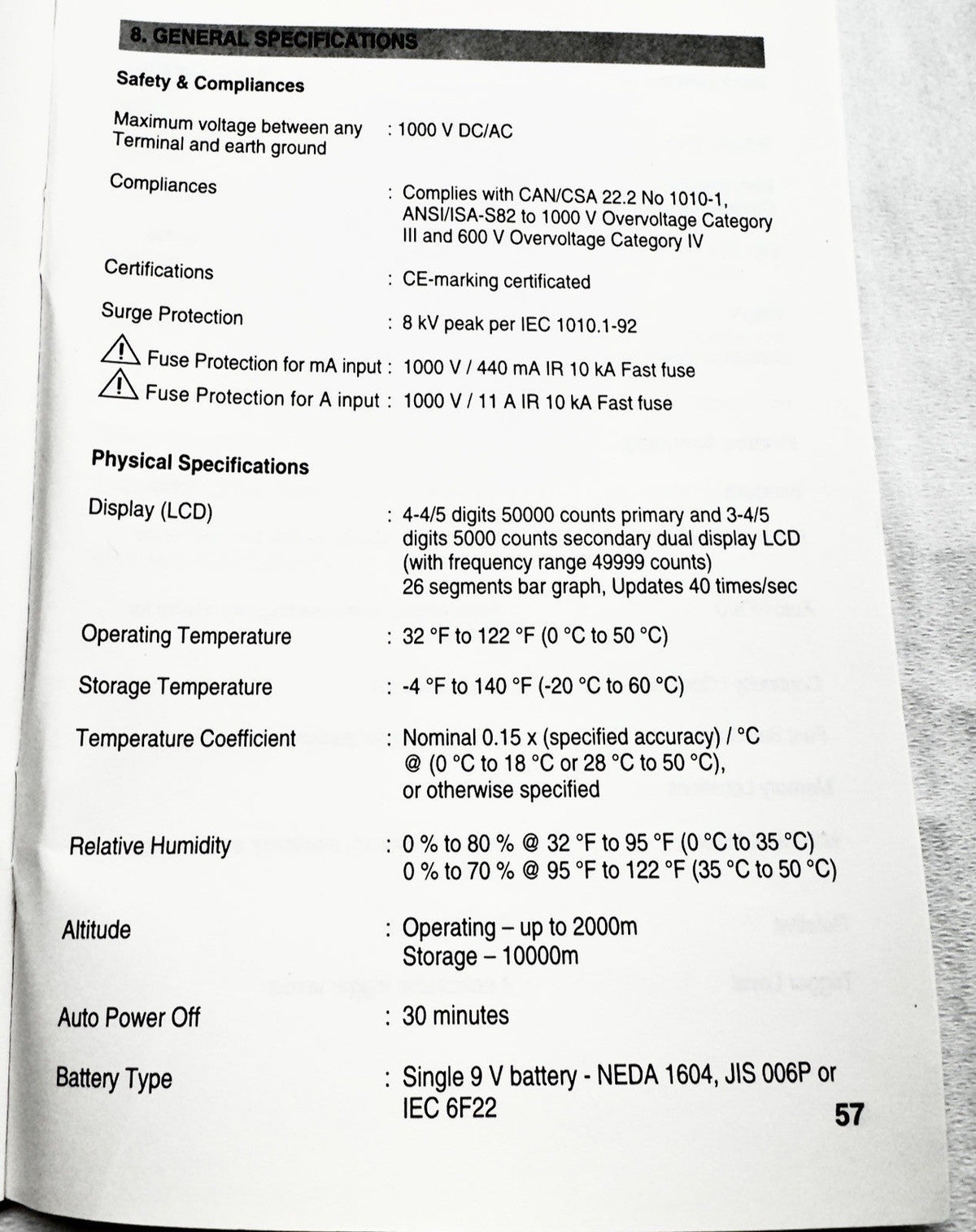

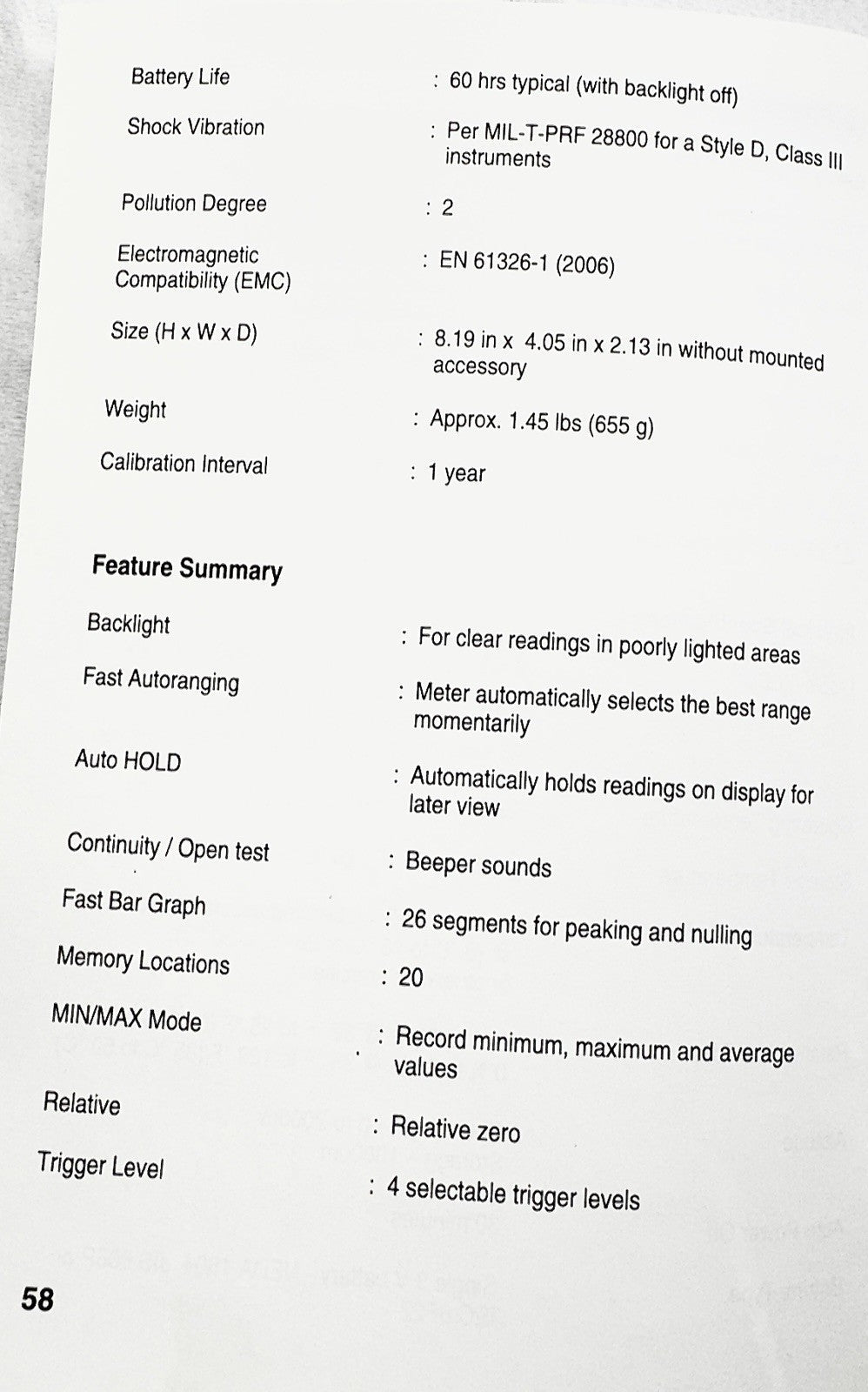

Meter specs:

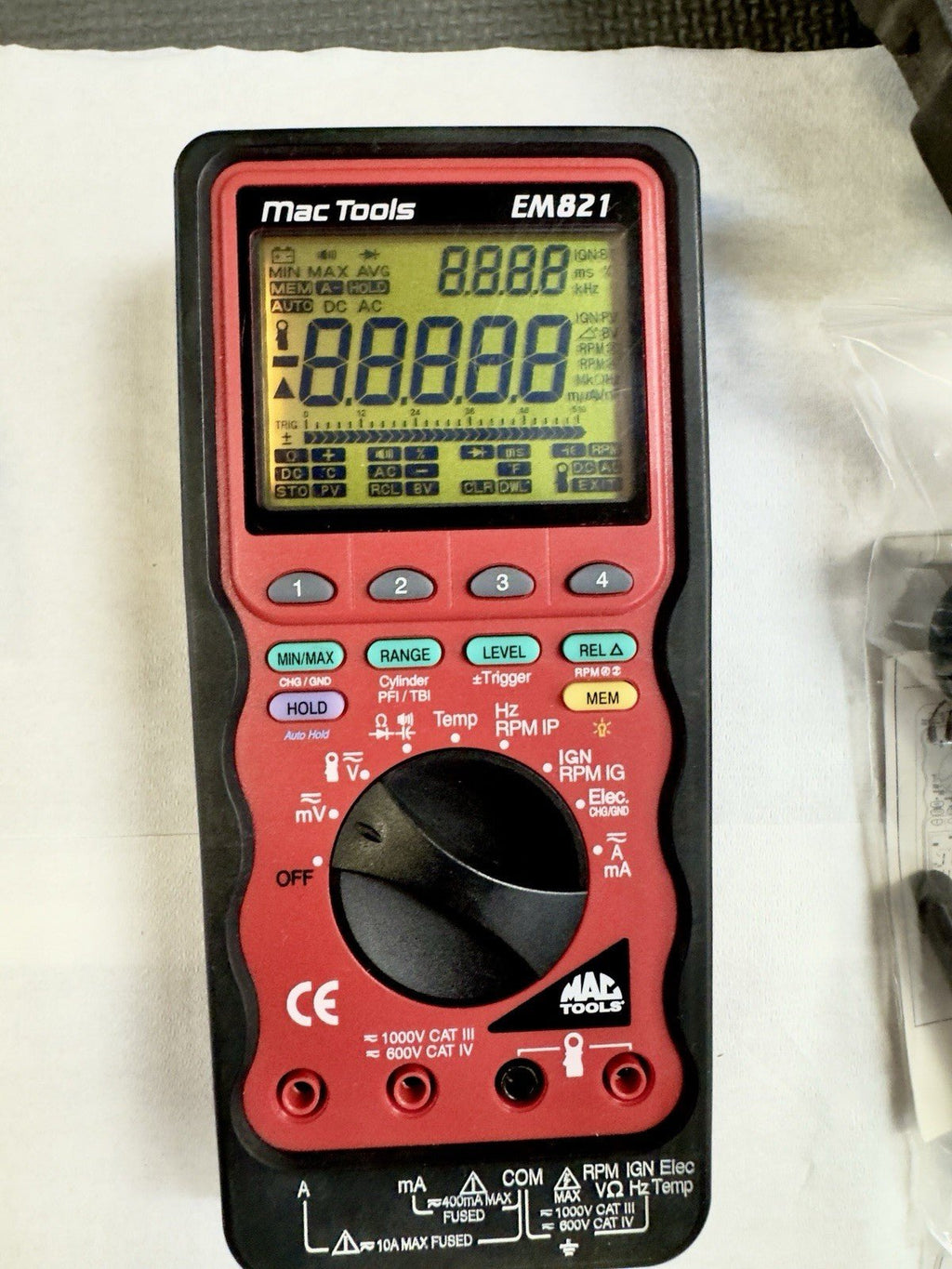

50,000-count primary display and 5,000-count secondary (dual display LCD) with

backlight.

26-segment fast bar graph, updates 40x per second.

Fast autoranging, Auto HOLD, MIN/MAX/AVG, Relative, 20 memory locations.

Continuity/open test with beeper.

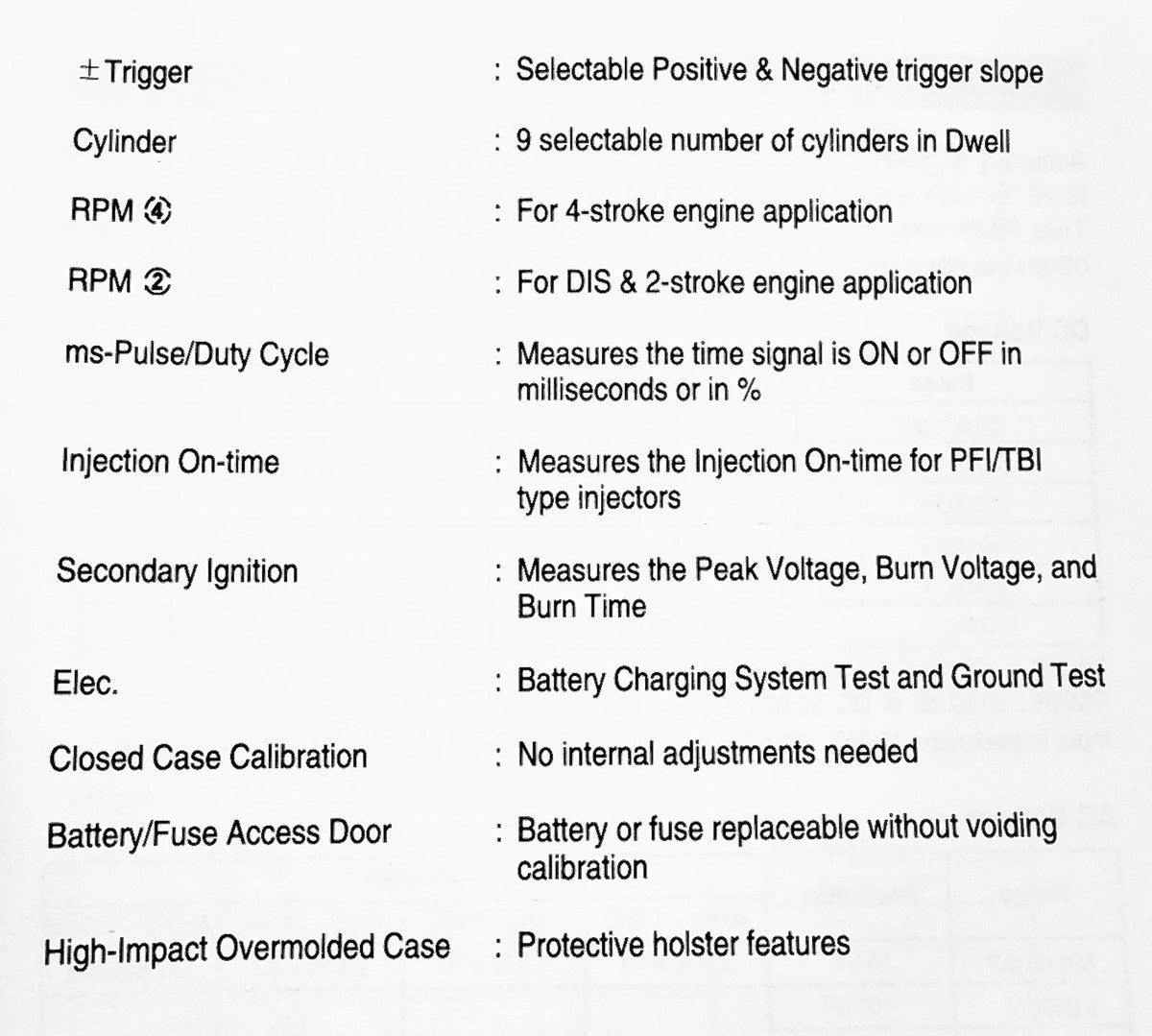

Automotive functions: RPM (4-stroke and 2-stroke/DIS), dwell (up to 9 cylinders),

pulse width/duty cycle, injector on-time (PFI/TBI), secondary ignition (peak voltage, burn voltage, burn time), battery/charging system test, ground test.

Selectable ± trigger slope and 4 trigger levels.

8 kV surge protection, fused mA and A inputs.

Over-molded protective holster.

Powered by one 9V battery, 30-minute auto power off.

Size 8.19" x 4.05" x 2.13", about 1.45 lbs

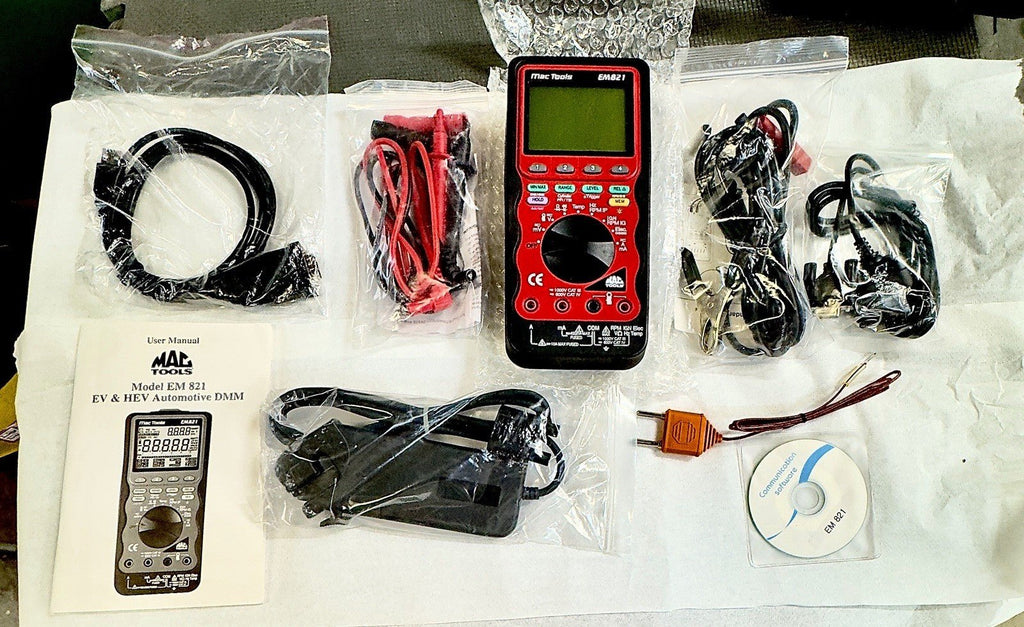

What's included:

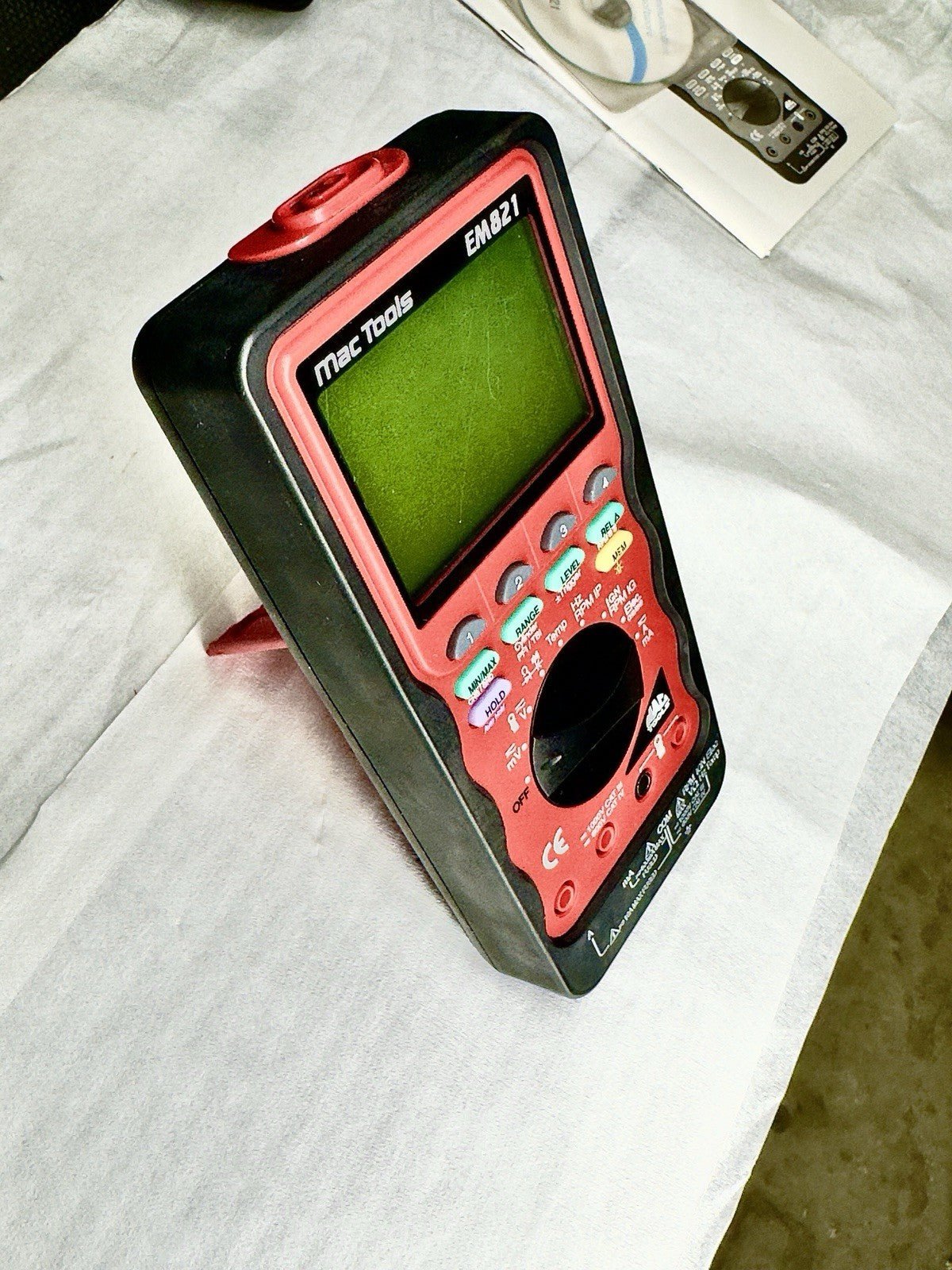

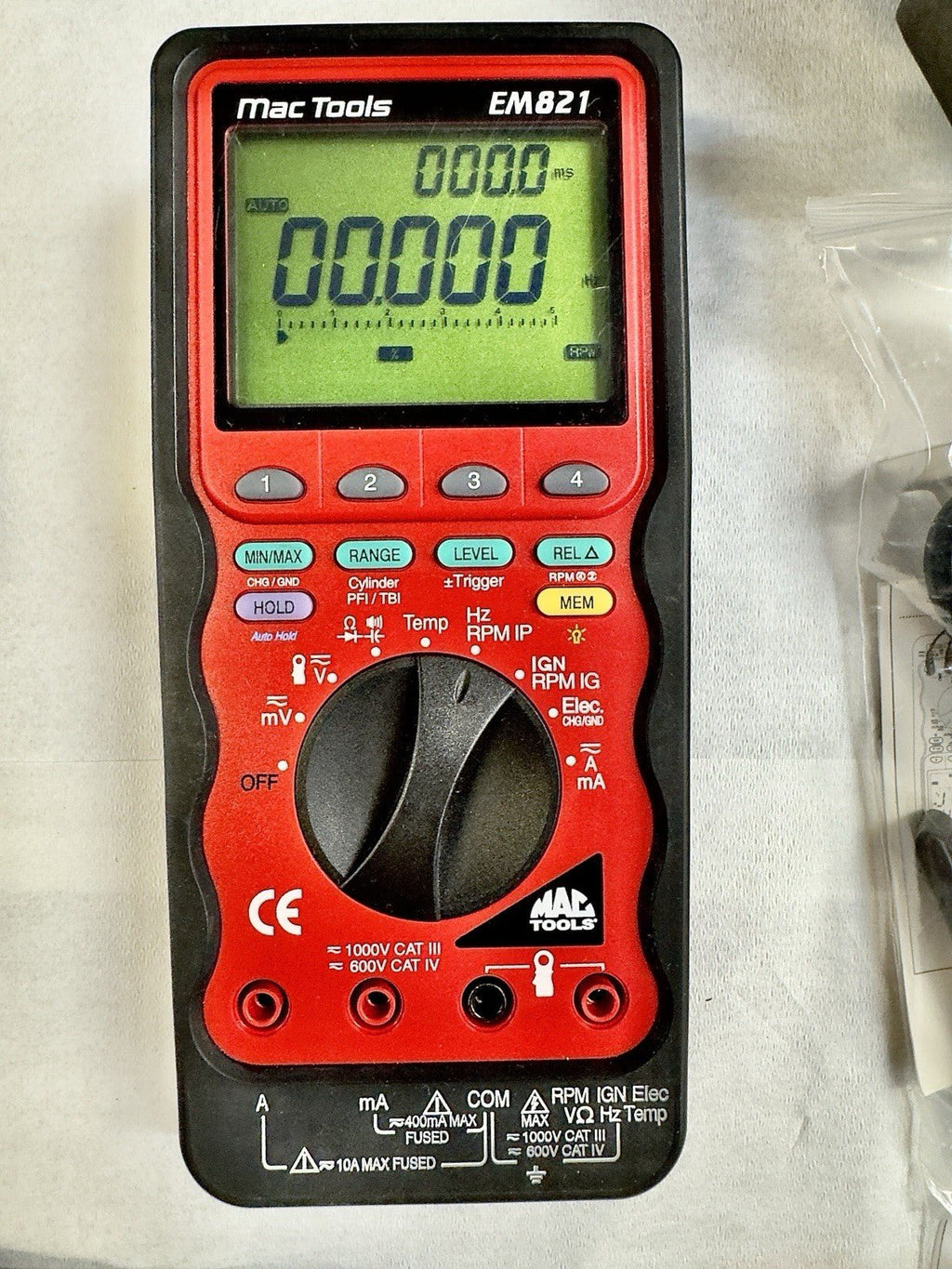

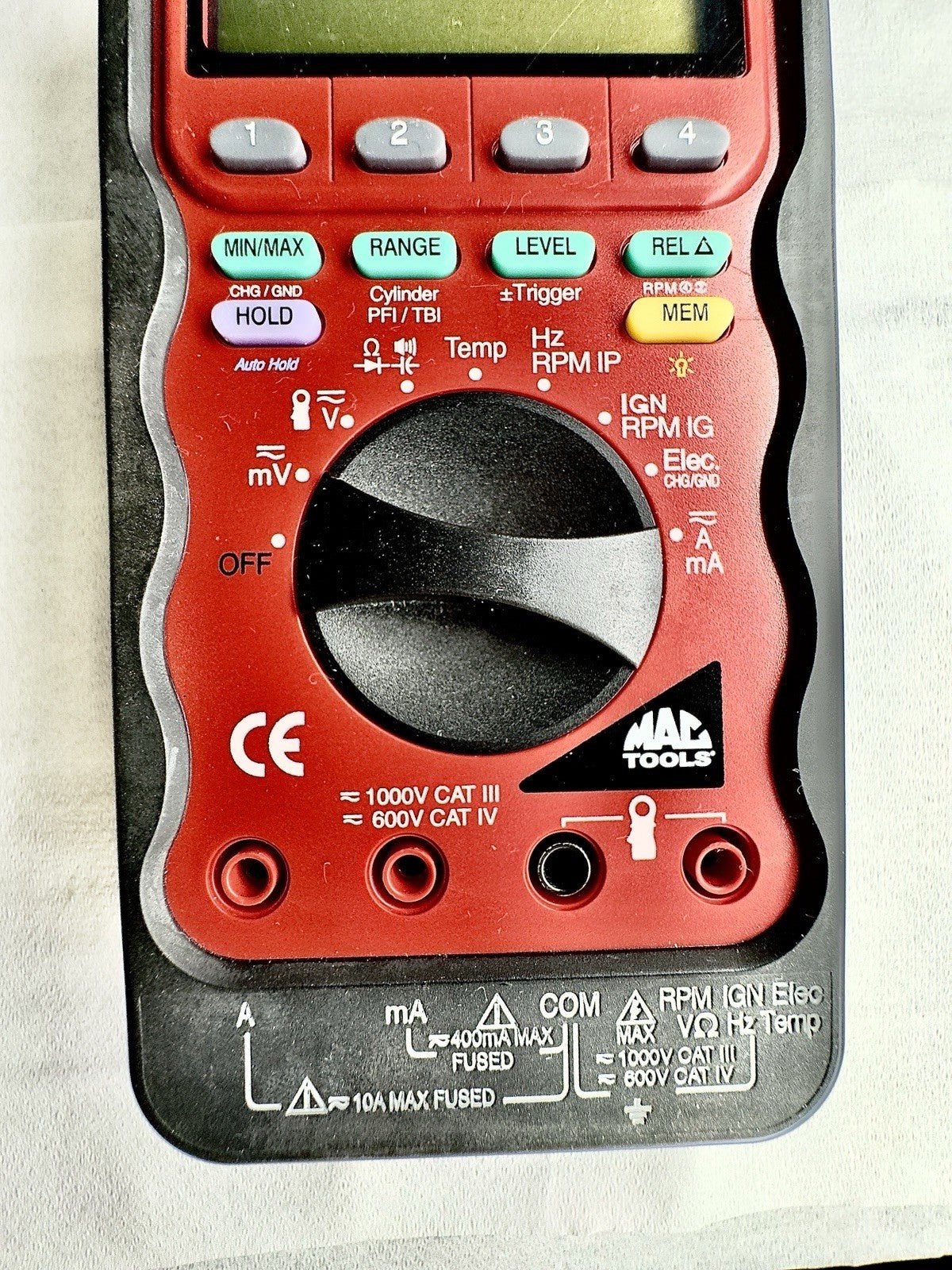

Mac Tools EM821 digital multimeter

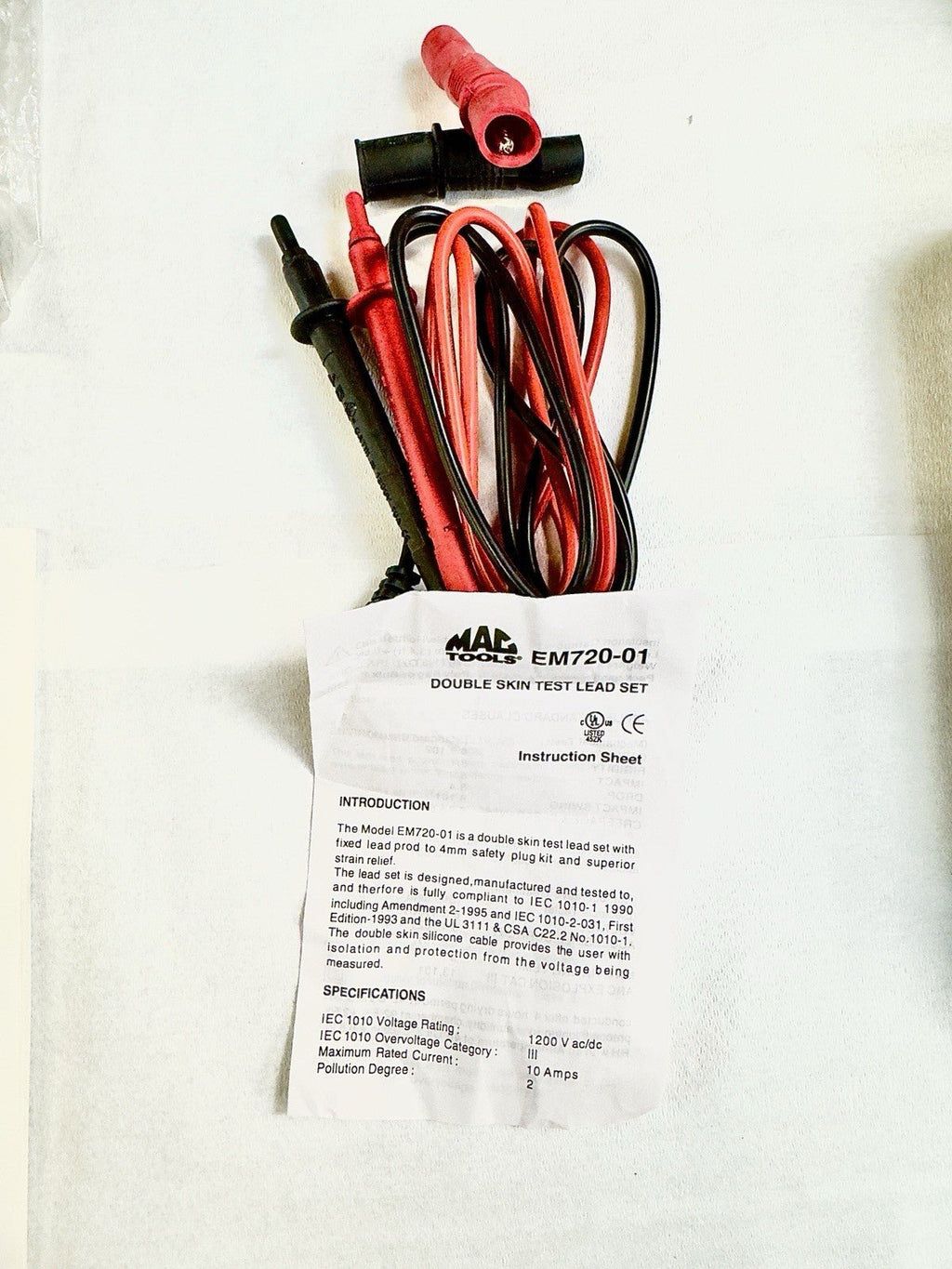

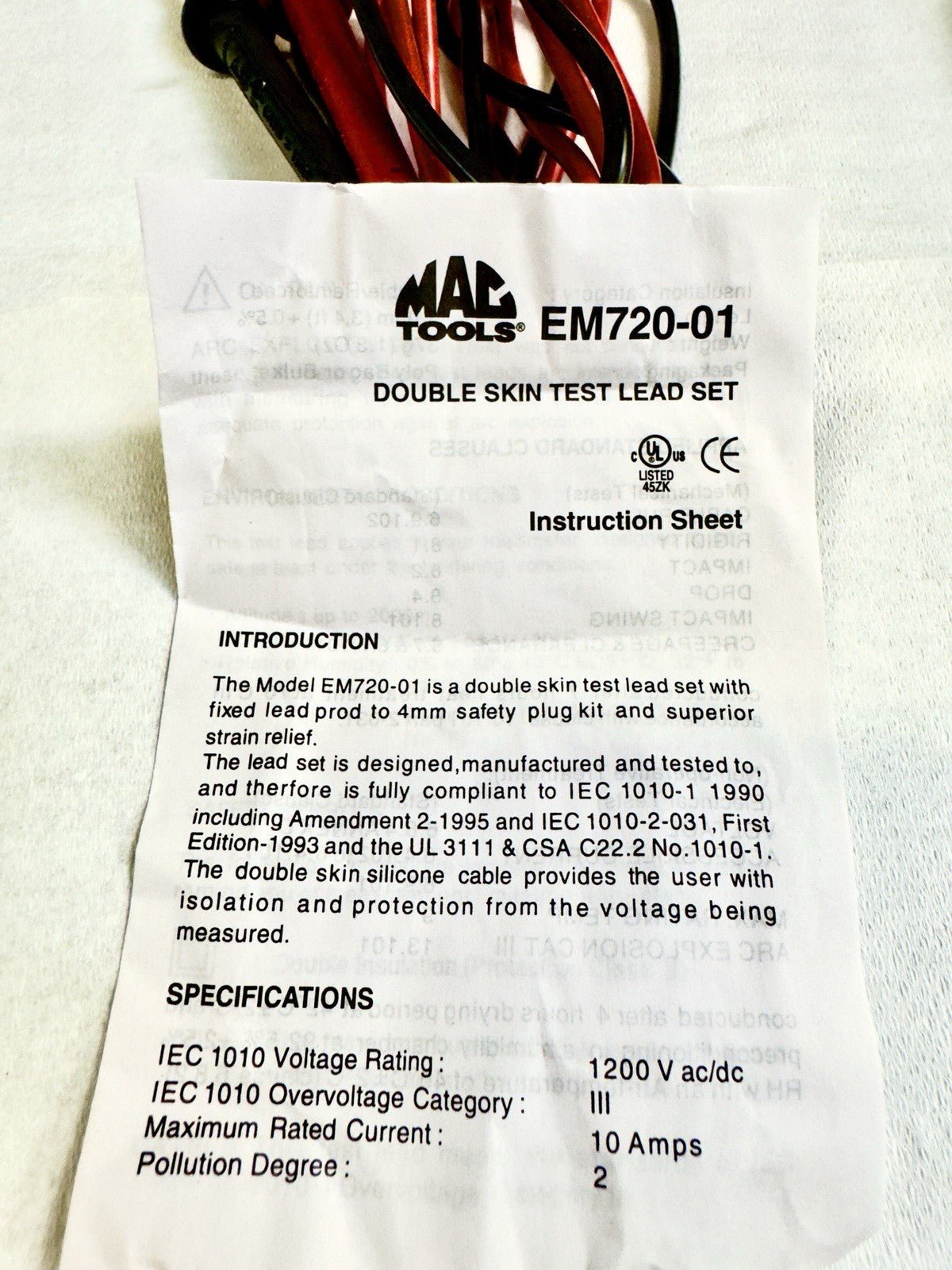

Mac Tools EM720-01 double-skin test lead set (1200V / CAT III / 10A) with probes

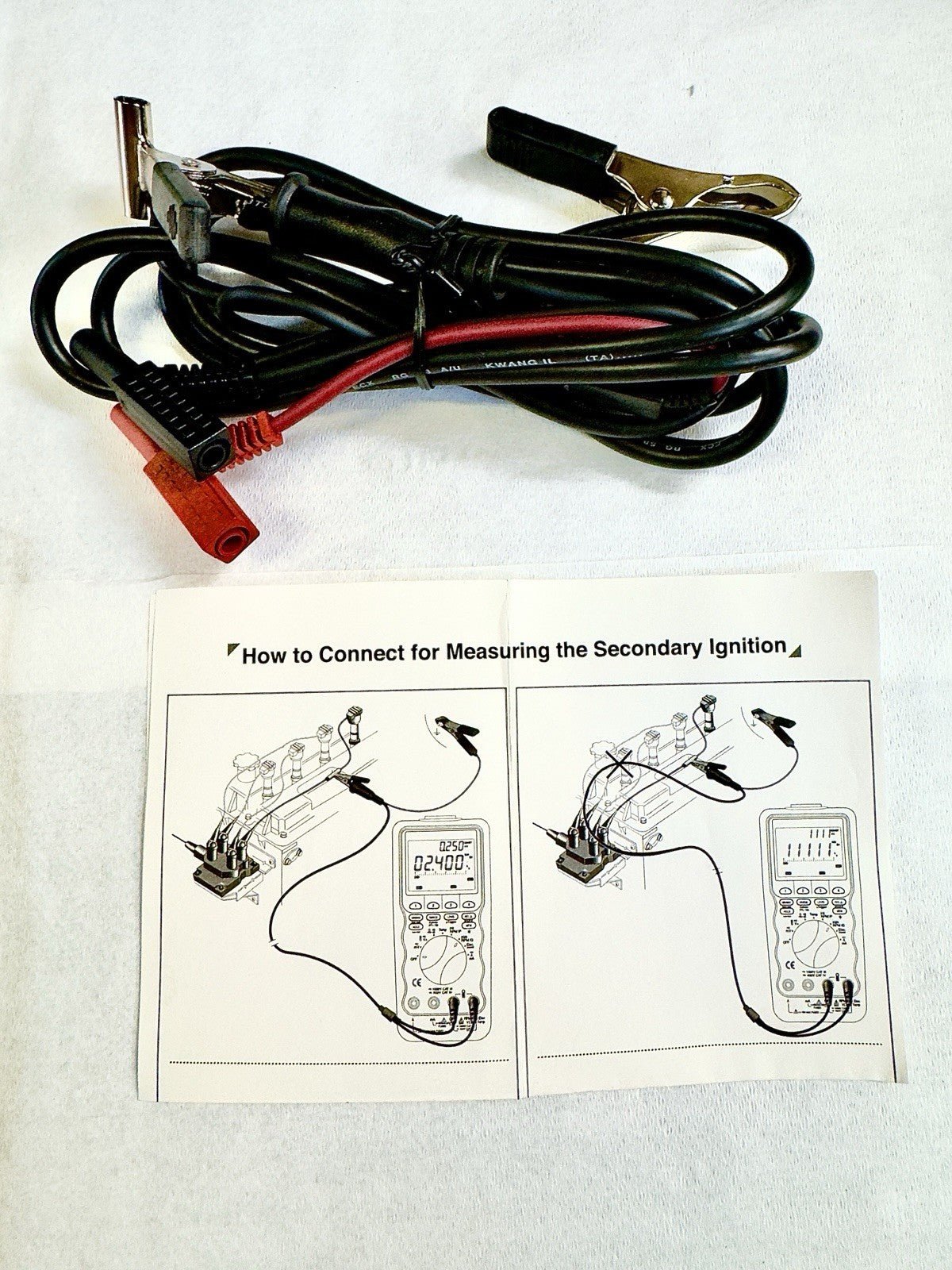

Secondary ignition cable set with clips and wiring instruction sheet

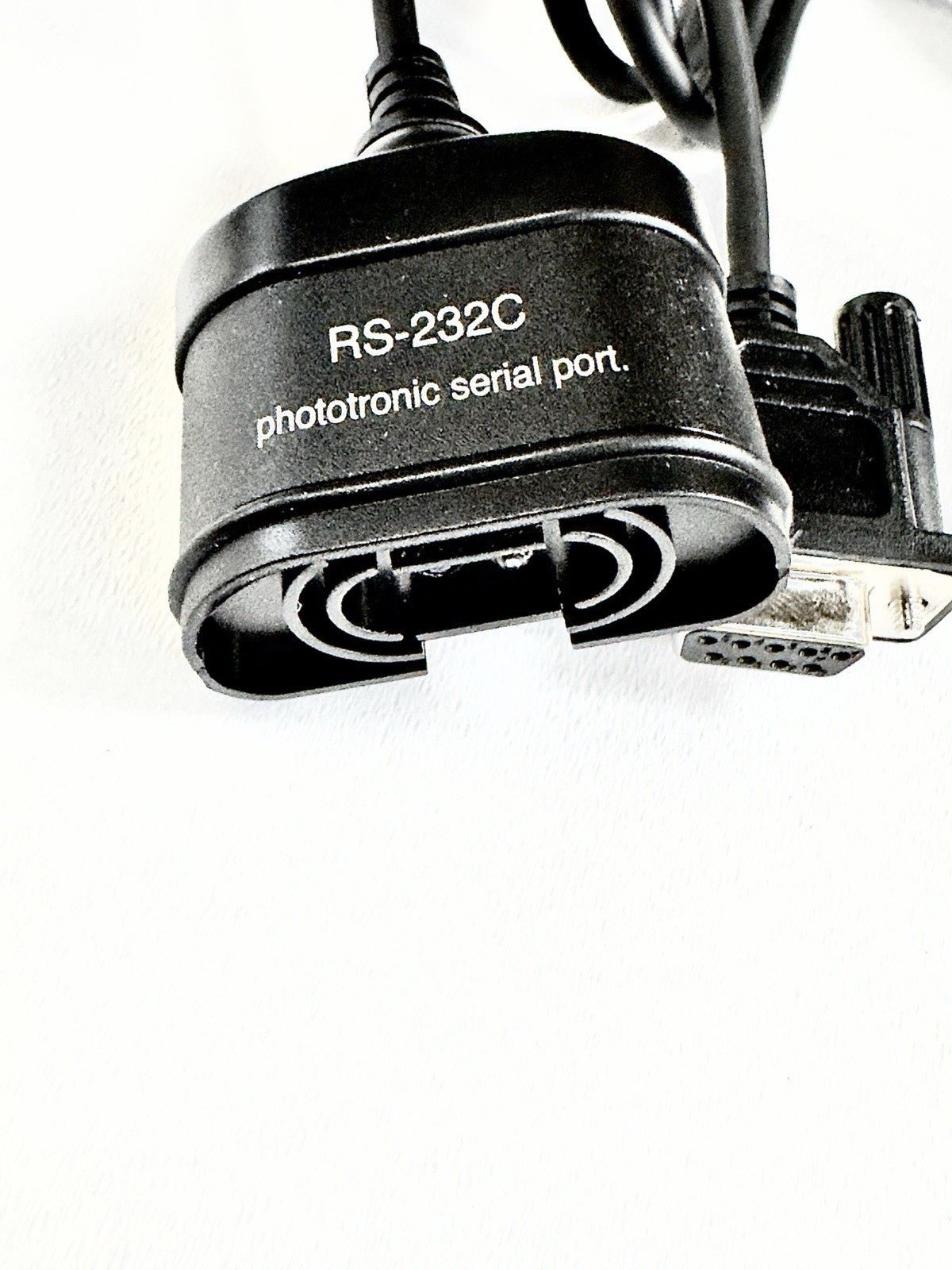

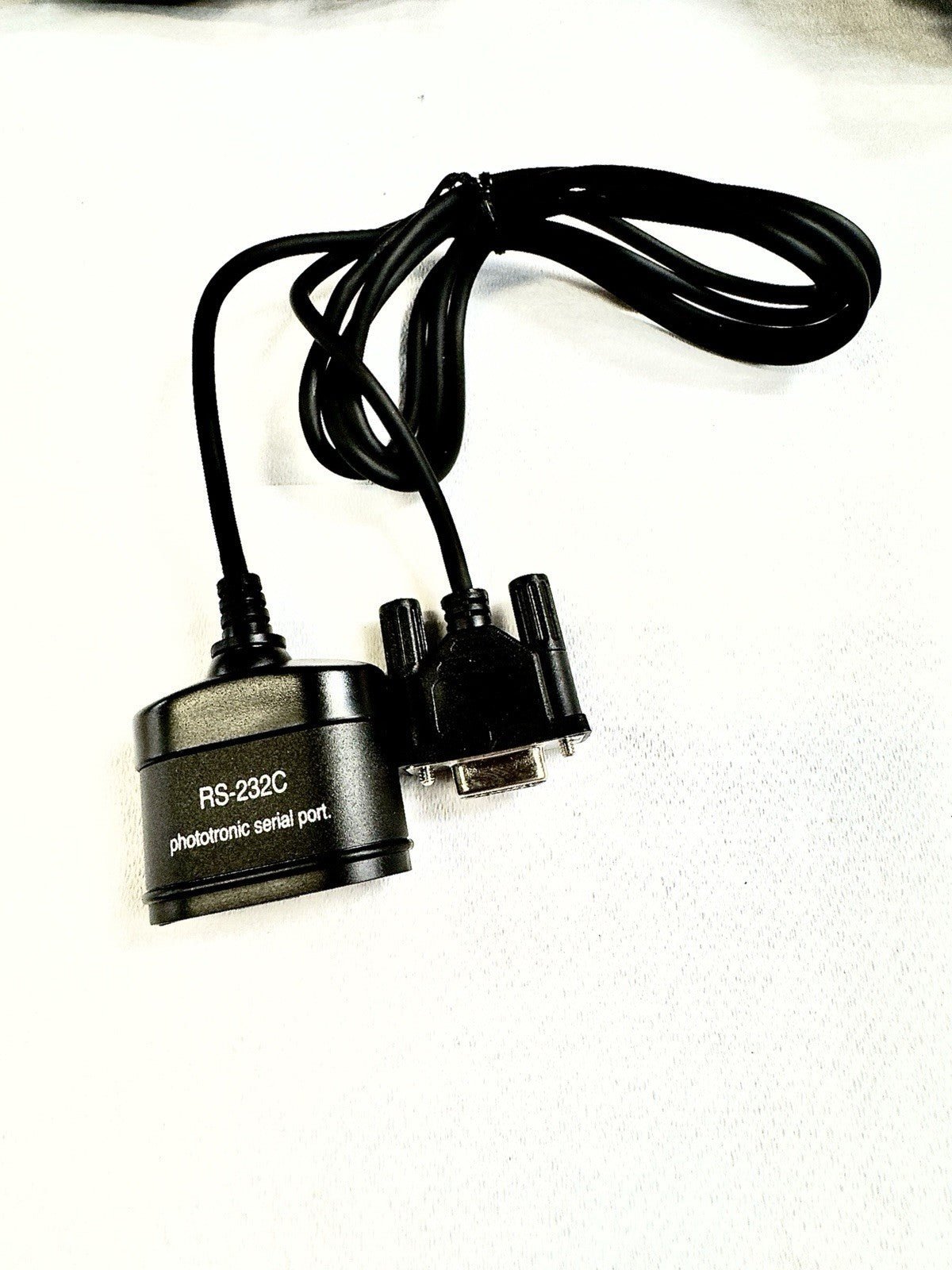

RS-232C optical (phototronic) serial interface cable with DB9 connector

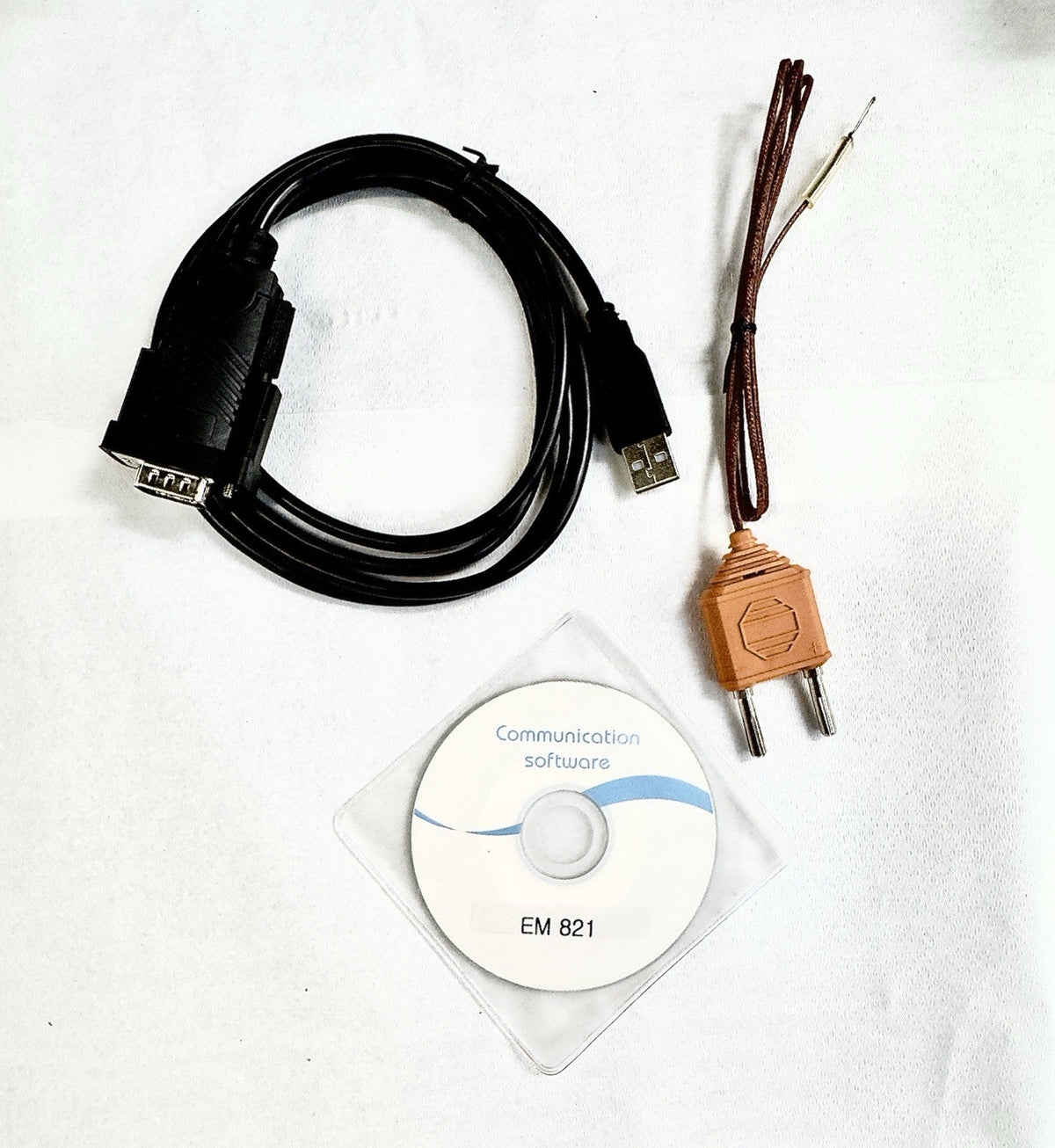

USB-to-serial (DB9) adapter cable for connecting to a computer's USB port

K-type thermocouple temperature probe

EM821 communication software CD

Printed Mac Tools User Manual

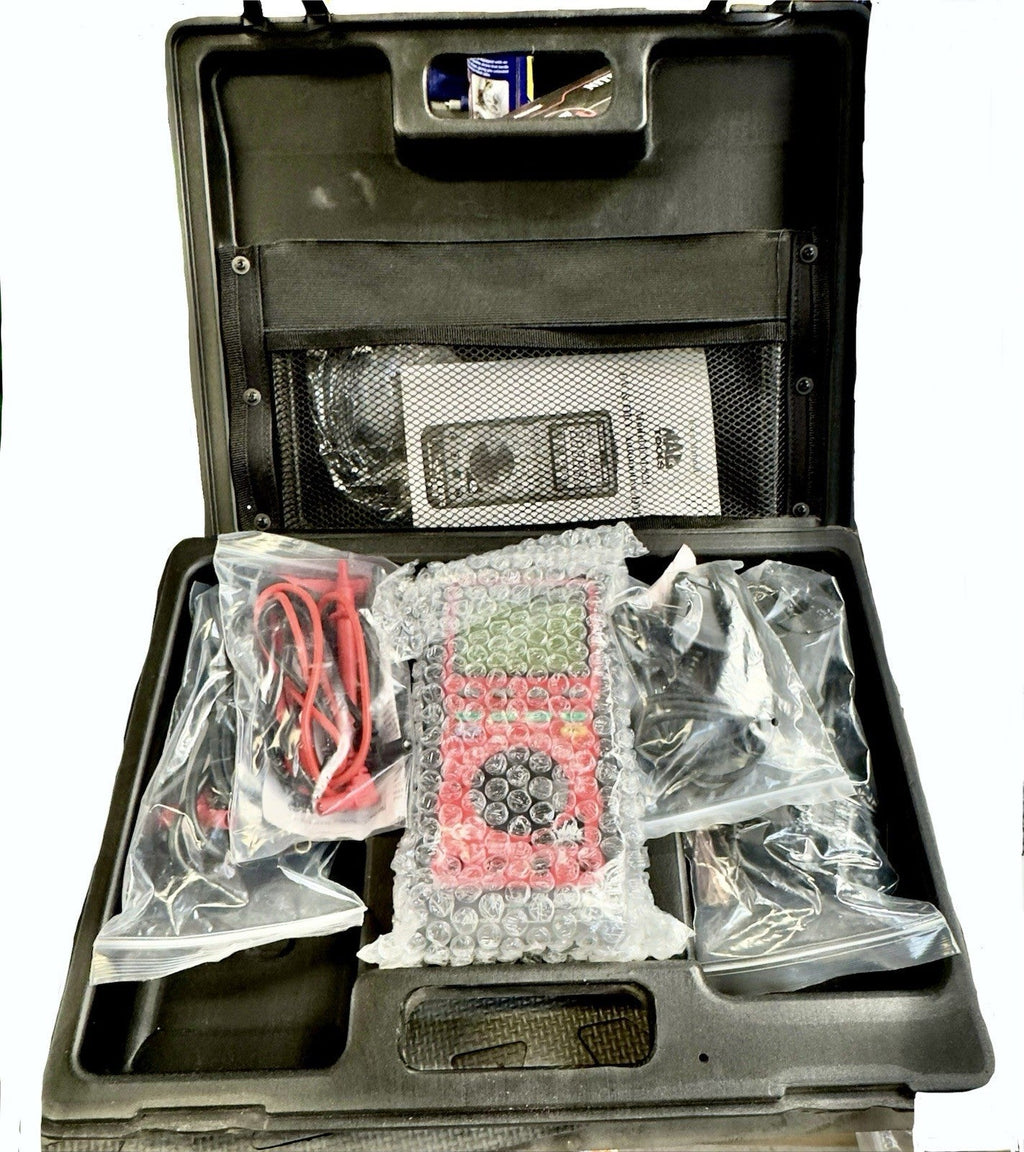

Molded hard carrying case (damaged, see below)*

Condition: Pre-owned. Unit has been used one time. DMM and all accessories are in like-new condition. The meter and accessories appear unused and are individually bagged and wrapped, as shown.

Testing: Powers on and functions. Sold AS IS.

Note: The software is on CD, so a computer with a disc drive (or a way to copy the disc to USB) is needed to install it. Compatibility with current operating systems has not been verified. Battery is included.

Please review all photos before purchasing

PLEASE READ: The hard carrying case is splitting along the lid/base seam. The edge trim is split and peeling, with a visible gap (see close-up photos). The case has additional scuffs and nicks on the rim and edges. However, it latches and closes. The meter and accessories are not affected.

Shipping: Ships in [1-2] business days, securely packed.

Local pickup available in the

Fruita/Grand Junction, CO area.
